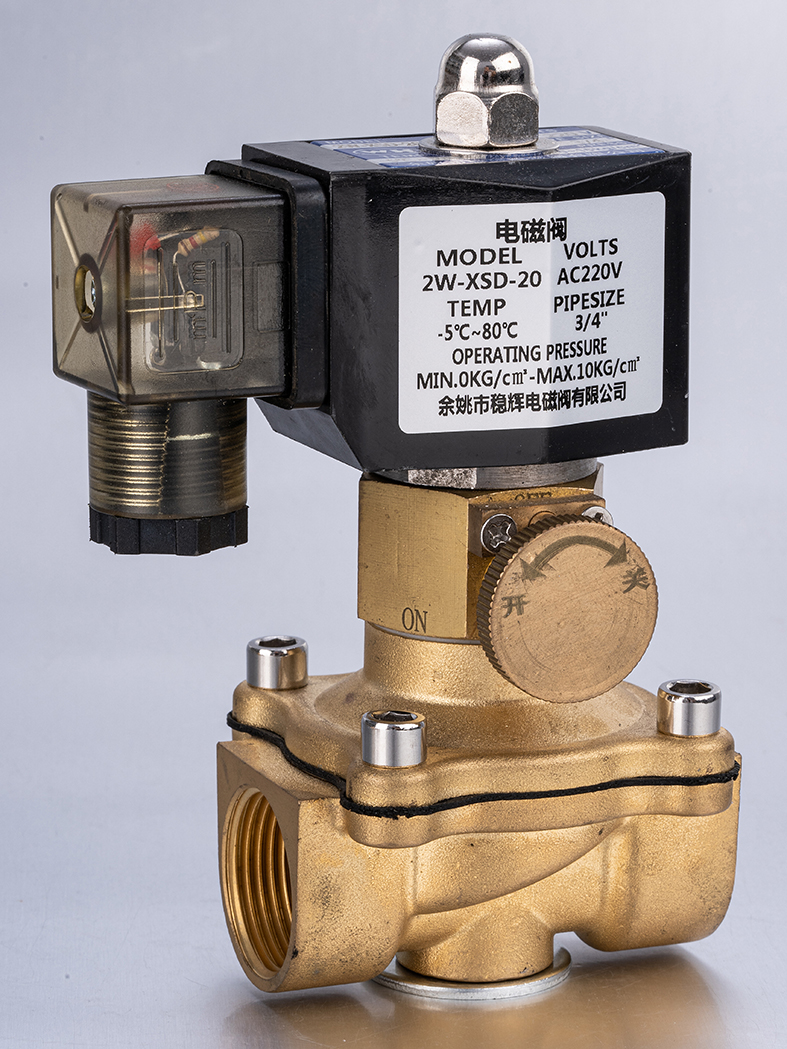

Manual Emergency Switch Battery Valve
Characteristic
Manual switch in the case of power failure,can be emergency switch hedging,make up for the ordinary solenoid valve
in the case of no power,can not be closed shortcomings.
Technical Parameter
| Product name | Manual emergency switch solenoid valve |
| Operating voltage | AC220V DC24V,etc |
| Medium | Water gas oil(no viscosity),etc |
| Action type | Direct acting diaphragm type |
| Working form | Normal close |
| Working pressure | 0~1.0MPA |
| Body material | Brass,stainless steel |
| Sealing material | -5~80℃(NBR) |

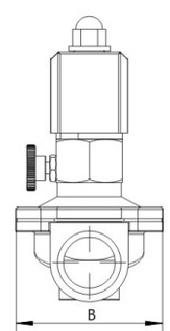

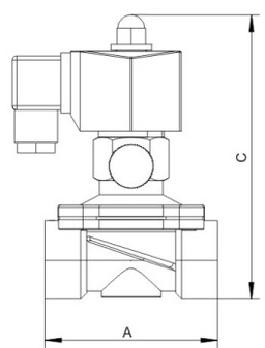

Dimensions
| Model | A | B | C |
| 2W-XSD-10 | 62 | 52 | 122 |
| 2W-XSD-15 | 62 | 55 | 122 |
| 2W-XSD-20 | 67 | 55 | 133 |
| 2W-XSD-25 | 85 | 73 | 137 |
| 2W-XSD-32 | 98 | 77 | 150 |
| 2W-XSD-40 | 106 | 80 | 184 |
| 2W-XSD-50 | 120 | 80 | 196 |
| 2W-XSD-65 | 178 | 105 | 230 |
| 2W-XSD-80 | 180 | 105 | 250 |
| 2W-XSD-100 | 230 | 128 | 275 |
